Steering Frame

Construct the steering frame from 2″ x 4″s, a 1″ hole is drilled through the back support and halfway through the front support for the steering rod. The holes should be approximately 1 1/4″ down from the top of the supports. Build the steering housing first, then place it on the frame 1 1/2″ from the front to locate the bolt holes. See sk-7.

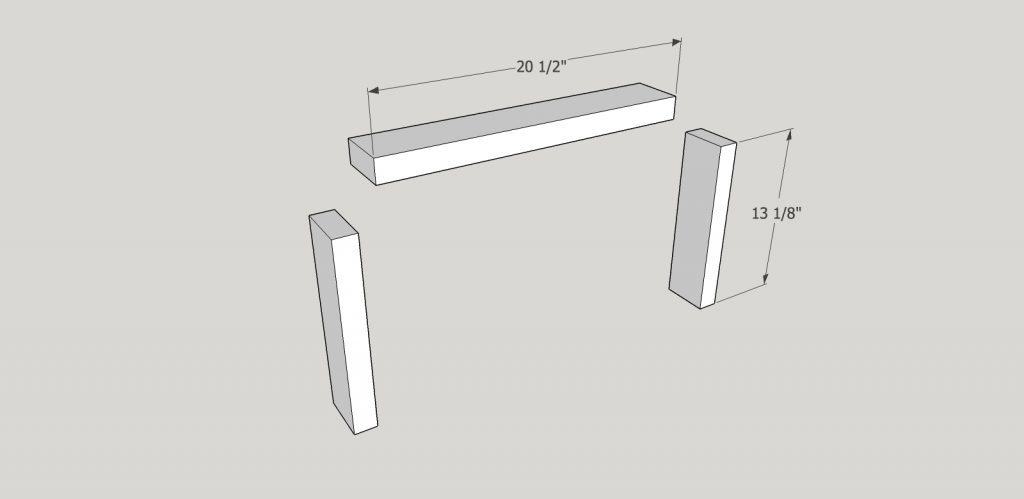

The steering frame is made of 2 x 4s as shown in figures sk-7 and sk-8. This frame will hold the steering wheel assembly.

SK 7

figures sk-7

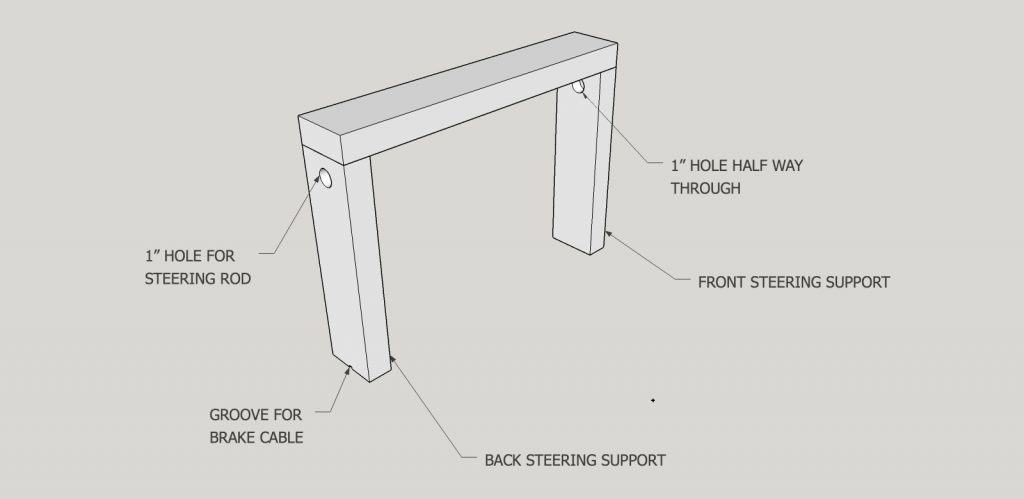

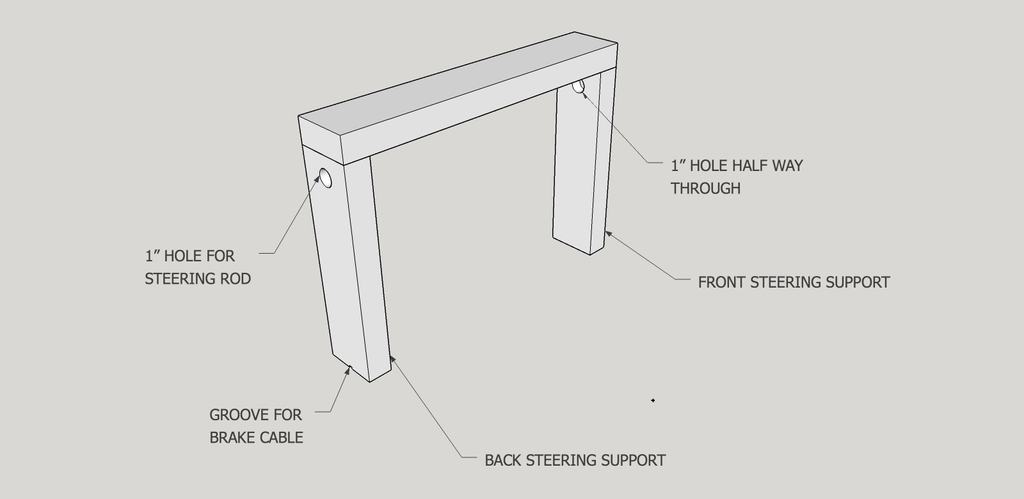

SK 8

figure sk-8

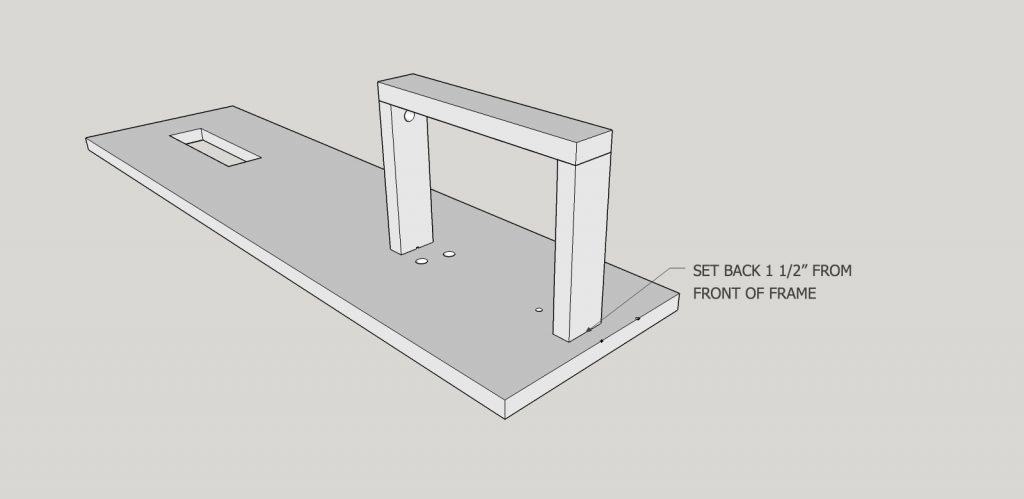

When the frame is complete, mount it to the frame as shown in figure sk-9. It should be held in place with wood screws from the underside of the frame.

Steering set up continues later in the process.

SK 9

figure sk-9
