Crate Construction



The crate is the signature piece of the car.  It MUST look like an old time orange crate.

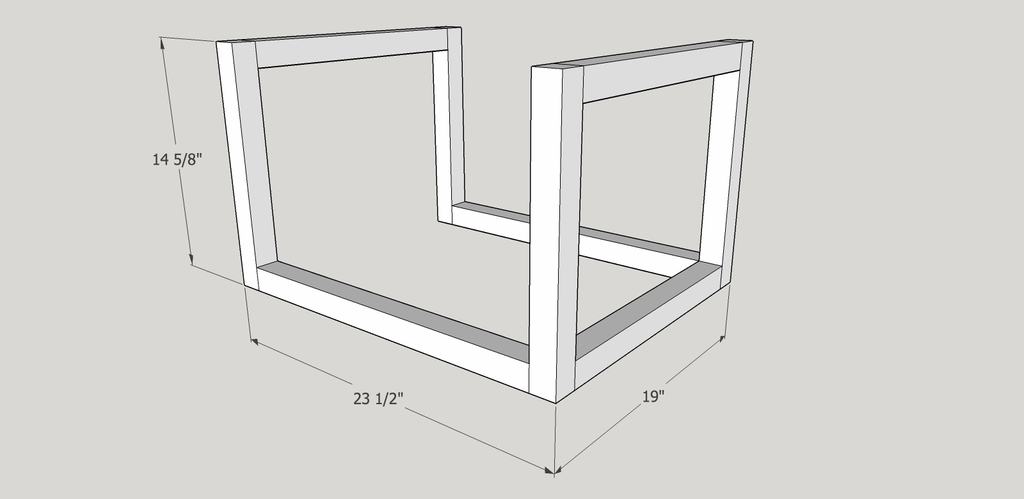

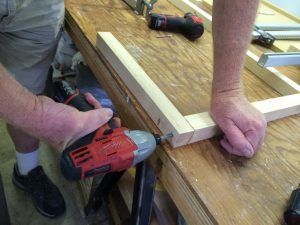

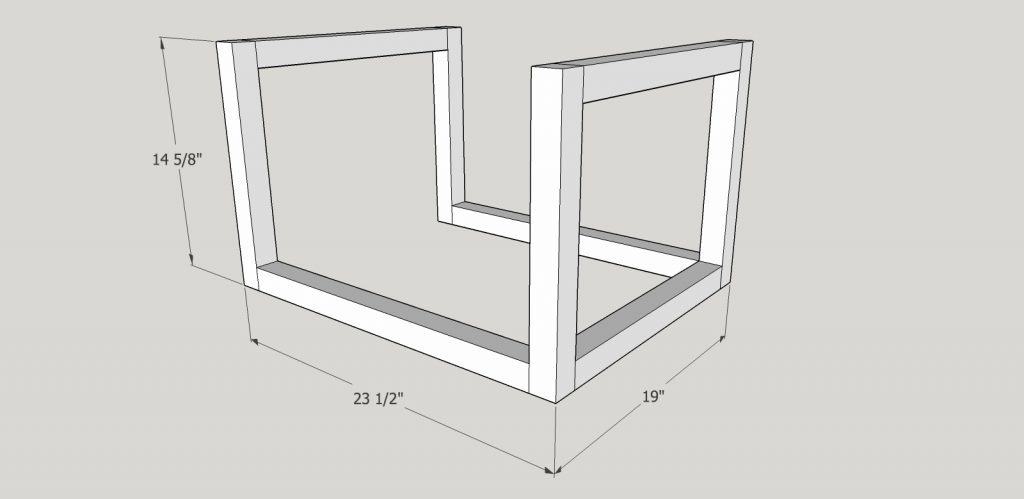

The frame of the crate is made of 2″ x 2″ wood (1 1/2″ x 1 1/2″).  The front and back pieces are rectangular in shape.  The front piece has four sides and the back piece three.  There are two side pieces at the bottom of the crate that separate the front and back rectangles (see sk-28).

SK 28

figure sk-28

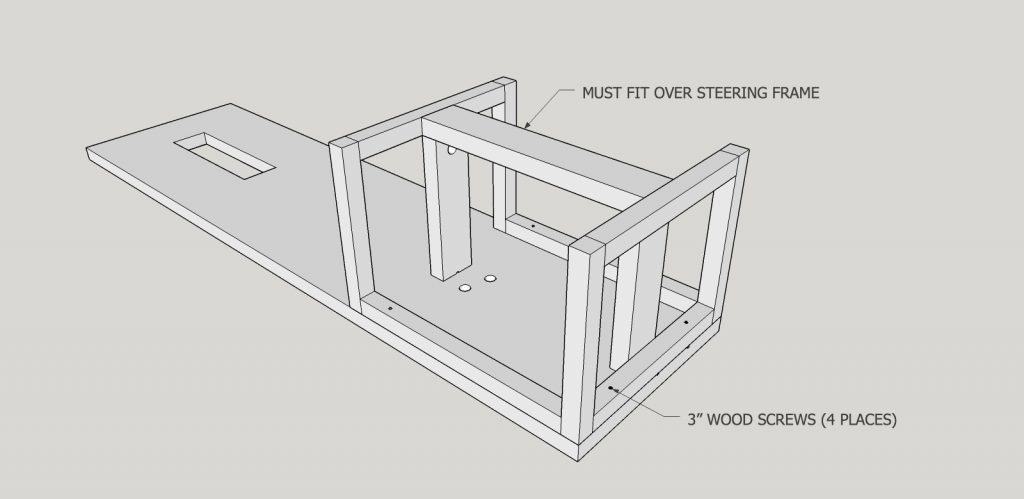

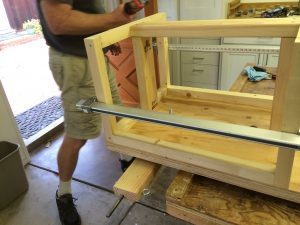

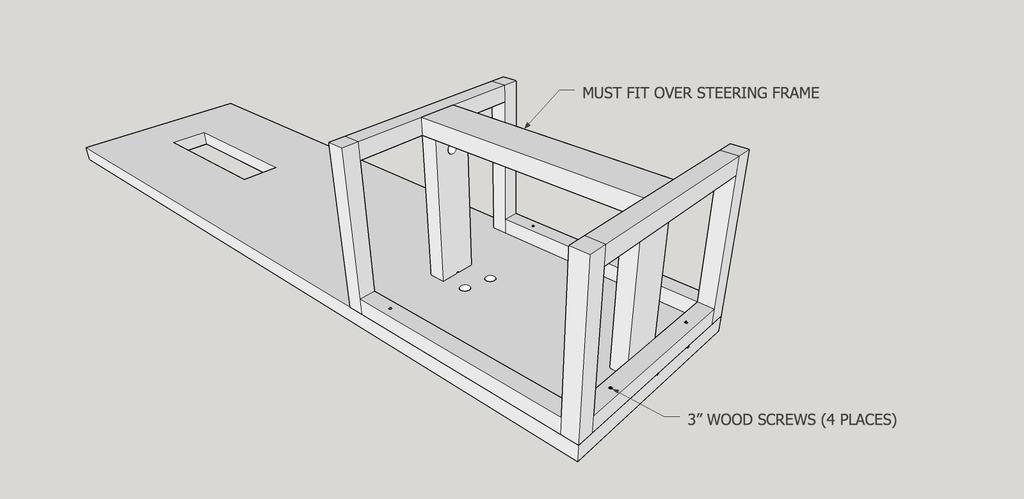

This structure must fit snugly over the steering frame See figure sk-29.

SK 29

figure sk-29

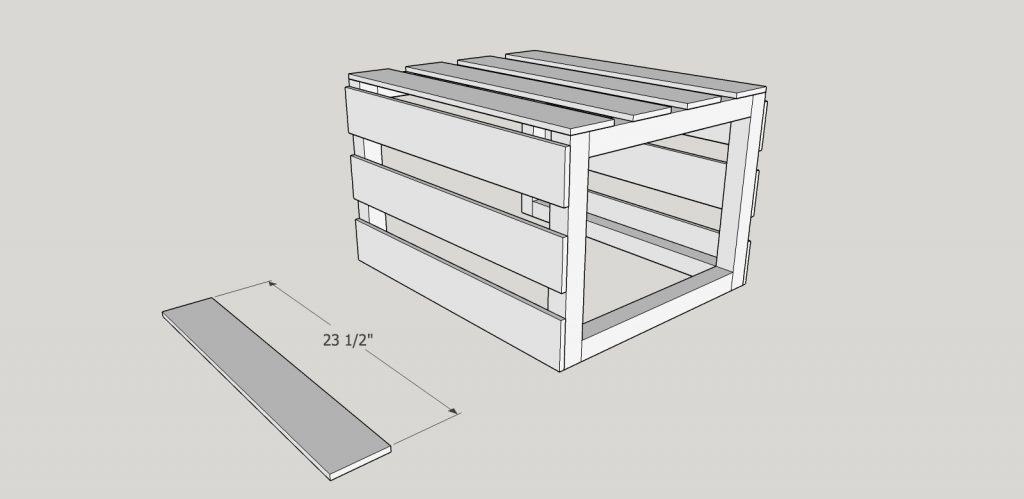

The crate frame is covered with slats made of approximately 3/8″ thick wood, about 3 1/2″ wide and 23 1/2″ long. Three slats on each side, and four on top. See figure sk-30.

SK 30

figure sk-30

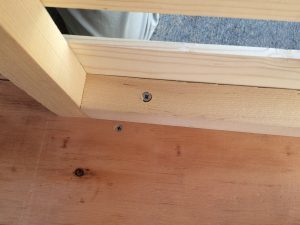

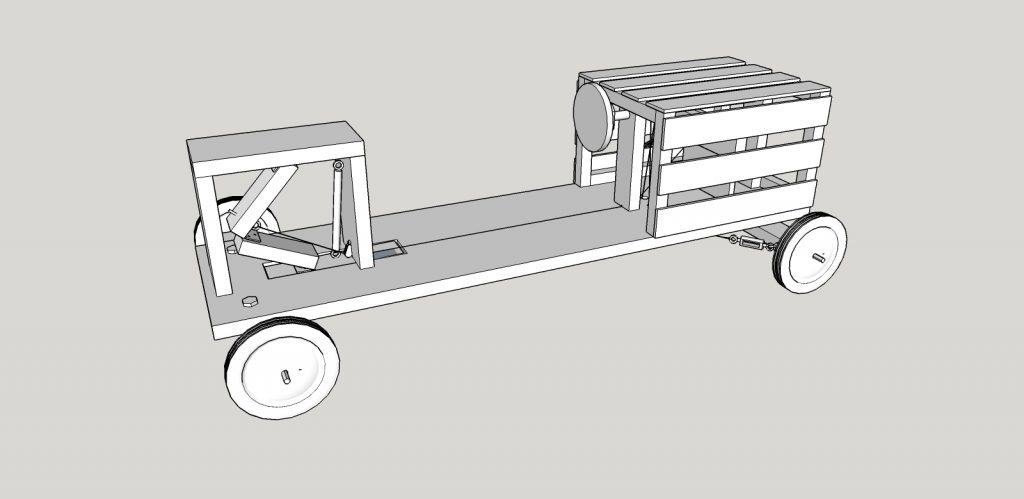

When the crate has been constructed, fasten it to the frame as shown in figure sk-31.
SK 31
