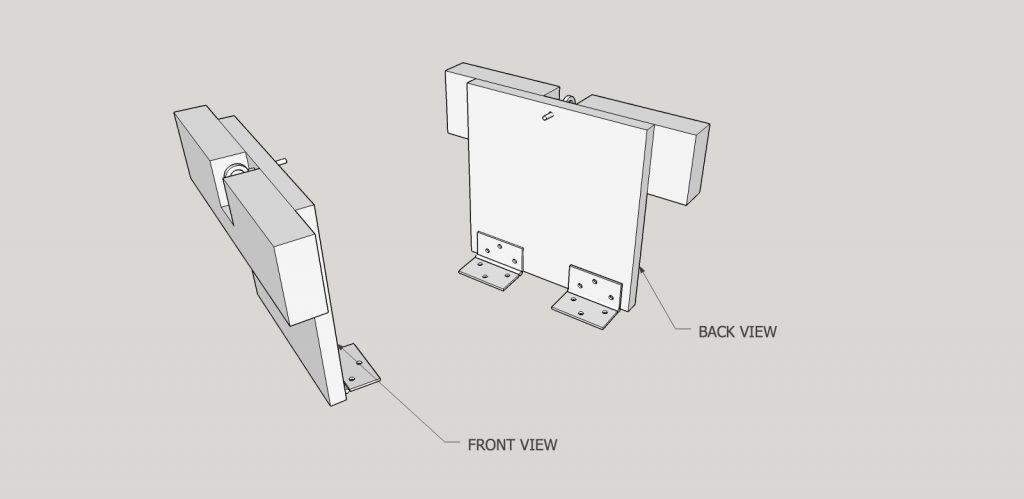

The brake pedal is made from a 8″ x 10″ piece of plywood with a piece of 2″ x 4″ fastened across its top. This pedal is fastened to the frame with two hinges. It has an eyebolt through its top part, to which the brake cable is fastened. The brake cable will go from the top of the brake pedal, through the eyebolt at the base of the rear steering frame support, under the seat, through the pulley at the base of the front brake housing support, and then is fastened to the eyebolt in the upper brake linkage arm in a later step.

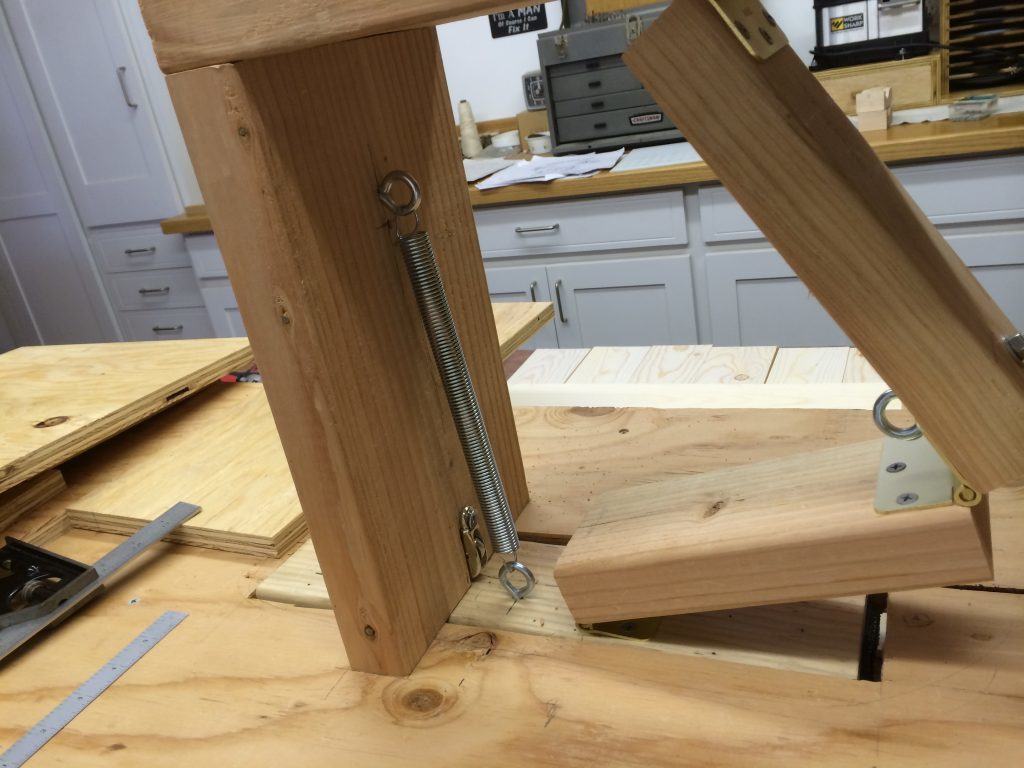

Attach a spring to the back brake housing support eyebolt and the brake arm eyebolt. This is to retract the brake arm.
